Plastic extrude /PVC coating machine for flexible metal hose / liquid tight hose machine / PVC coating cable hose machine / PVC corrugated hose machine
A PVC jacked machine is a specialized piece of equipment in the manufacturing industry.
Material: The main body of the PVC jacked machine is typically made of high – strength steel alloys. This robust material ensures the machine’s stability and durability during long – term operation, similar to what’s used in a Flexible Metal Conduit Machine. The components in contact with PVC are often coated with anti – corrosion materials to prevent damage from the PVC compound.
Function: Its primary function is to apply a PVC jacket onto various substrates, such as cables or conduits. It can precisely control the thickness and quality of the PVC layer, enhancing the product’s protection against moisture, abrasion, and chemicals. Just like a Flexible Metal Conduit Machine, it streamlines the production process and improves efficiency.
Specification: PVC jacked machines come in different sizes and production capacities. They can handle substrates with diameters ranging from a few millimeters to several centimeters. The speed of the jacketing process can also be adjusted according to specific requirements.
Standard: It must meet strict international and industry standards, such as ISO and CE. These standards guarantee the machine’s safety, reliability, and the quality of the PVC – jacked products.
FUNCTION OF THE MACHINE :
Coating plastic material like PVC, PE , PA , etc on the surface of all kinds pipe from size 1mm to size 150mm .
| BSJ 包塑机 | ||||
| 型号（TYPE） | BJS-50 | BJS-65 | BJS-90 | BJS-125 |
| Screw diameter （mm） | 50mm | 65mm | 90mm | 125mm |
| MAX hose size | 1’’ | 2’’ | 4’’ | 6’’ |
| power | 11 | 15 | 55 | |
| productivity | 150-180m/h | 150-180m/h | 120-150m/h | 120-150m/h |
| Size (mm) | 4000*600*1200 | 4000*600*1200 | 4000*600*1200 | 4000*600*1200 |
| Weight (KG) | 1500 | 2500 | 2500 | 3000 |

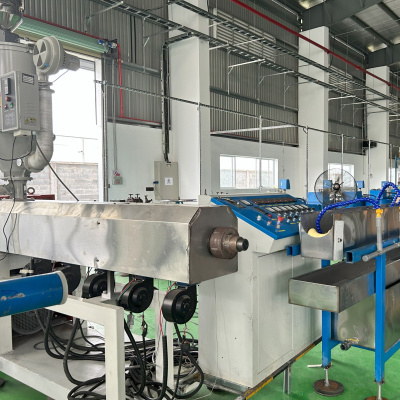

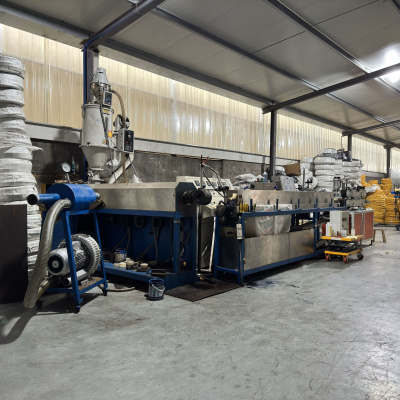

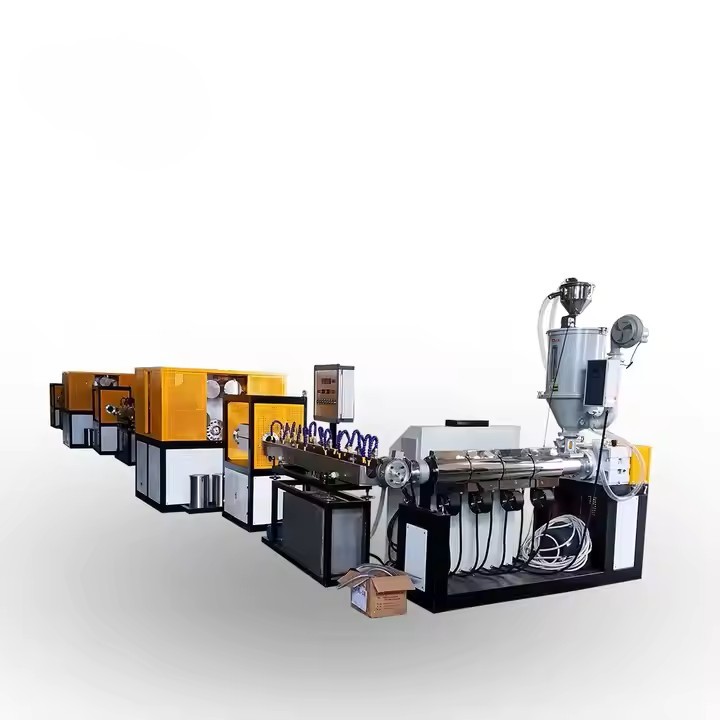

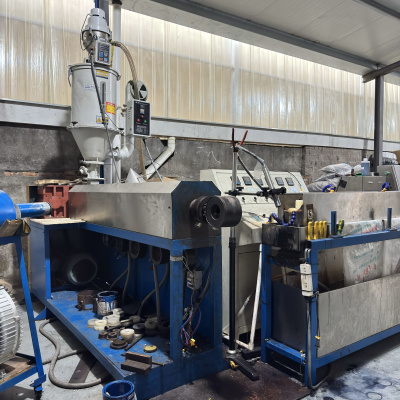

PVC Coating Machine BSJ-65
- Extruder—————————————————-1 set
Screw diameter——————————————-65mm
Length-diameter ratio——————————————–25:1
Screw material—————————————————–38CrMoAlA
Screw revolving speed———————————–0-90r/min
Main motor———————————————— 15kw
Reverser —————————————————ITR
Heating zone———————————————-6zone
Heating power——————————————–20kw
Type of heating——————————————-cast aluminium
Type of cooling——————————————-air blower
Number of air blower————————————5 pcs
Power of air blower————————————–70w/pc
Low noise speed reducer——————————–1 set
Operating system—————————————–controller cabinet
Contactor————————————————– (famous domestic brand)
Extruder height——————————————-1100mm
- Cooling pond———————————————-1 set
Material —————————————————stainless steel
Effective length——————————————-2.4m
Type of cooling——————————————-water-cooling
Diameter of hose—————————————–Φ3/8”~Φ2”
Height of pond——————————————–1100mm
- Controller cabinet—————————————–1 set
Dimension ————————————————-1200mmx1000mmx450mm
Surface treatment——————————————paint
- Vacuumizing cabinet————————————–1 set
- Vacuum pump ———————————————-1 set
- mouds ——————————————————- 3/8” to 2”
- Cover area of whole production line——————–12m*4m
